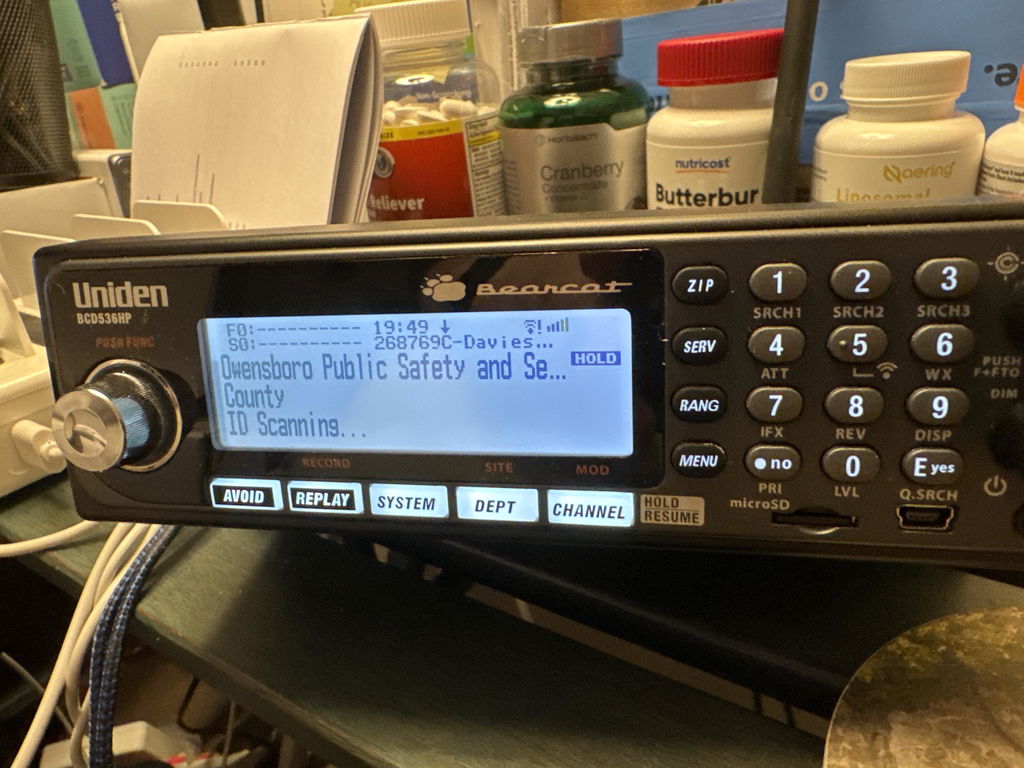

The Uniden 536HP digital TrunkTracker V is the first full mobile/desktop unit that requires no user programming. Simply turn it on, enter your zip code and TrunkTracker V does the rest. This user-friendly digital scanner will immediately begin hearing communications systems used by Public Safety, Aircraft, Military, Weather Spotters, and more. This functionality is made possible by combining the rich radio system database from Radio Reference with Uniden's patented radio system selection methods to correctly identify and monitor only nearby systems in the USA/Canada. Whether it is across town or across the street, the BCD536HP keeps you informed. The Wi-Fi functionality allows App connectivity to your smartphone or tablet from anywhere in your house, your car, or the world*. Advanced features make the BCD536HP a superior unit for scanner enthusiasts.

Simple Programming
Simply enter your zip code or city, and the BCD536HP selects the channels in use in your area
USA/Canada Radio Database
The built-in database includes all known channels in use in the United States and Canada. All services not available in some areas)
Sentinel PC Software Included *NOT COMPATIBLE WITH MAC
Lets you simply update the BCD536HP’s database and firmware, easily manage favorites lists, and edit other settings in your scanner
S.A.M.E. Emergency/Weather Alert
you to specify the area that you need to hear any alerts that may be Weather, Civil, Biological, Nuclear, or National in nature
(Analog, Motorola, EDACS, LTR Trunking, APCO 25 Phase 1 and X2-TDMA Phase Digital)

DEFAULT BAND COVERAGE - Frequency Range (MHz)

LOWER	UPPER	MODE	STEP (kHz)	BAND
25.0000	26.9600	AM	5	Petroleum Products & Broadcast Pickup
26.9650	27.4050	AM	5	CB Class D Channel
27.4100	27.9950	AM	5	Business & Forest Products
28.0000	29.6800	NFM	20	10 Meter Amateur Band
29.7000	49.9900	NFM	10	VHF Low Band
50.0000	53.9800	NFM	60	6 Meter Amateur Band
54.0000	71.9500	WFM	50	VHF TV Broadcast 2 – 4
72.0000	75.9950	FM	5	Intersystem & Astronomy
76.0000	87.9950	WFM	50	VHF TV Broadcast 5 – 6
88.0000	107.9000	FMB	100	FM Broadcast
108.0000	136.9916	AM	8.33	Commercial Aircraft
137.0000	143.9875	NFM	12.5	Military Land Mobile
144.0000	147.9950	NFM	5	2 Meter Amateur Band
148.0000	150.7875	NFM	12.5	Military Land Mobile
150.8000	161.9950	NFM	5	VHF High Band
162.0000	173.9875	NFM	12.5	Federal Government
174.0000	215.9500	WFM	50	TV Broadcast 7 – 13
216.0000	224.9800	NFM	20	1.25 Meter Amateur Band
225.0000	379.9750	AM	25	UHF Aircraft Band
380.0000	399.9875	NFM	12.5	Trunked Military Band
400.0000	405.9875	NFM	12.5	Miscellaneous
406.0000	419.9875	NFM	12.5	Trunked Federal Government
420.0000	449.9875	NFM	12.5	70 cm Amateur Band
450.0000	469.9875	NFM	12.5	UHF Standard Band
470.0000	512.0000	NFM	12.5	UHF TV Band
758.0000	787.99375	NFM	6.25	Public Service Band
788.0000	805.99375	NFM	6.25	Public Service Band
806.0000	823.9875	NFM	12.5	Public Service Band
849.0125	868.9875	NFM	12.5	Public Service Band
894.0125	960.0000	NFM	12.5	Public Service Band
1240.0000	1300.0000	NFM	25	25 cm Amateur Band

When you select AUTO for a channel, modulation, or step, the above values are used unless you've edited the Band Defaults

Steps can be selected from 5/6.25/7.5/8.33/10/12.5/15/20/25/50/100/AUTO (kHz).

Although TV bands are listed, the scanner cannot decode digital TV audio.

Product Manual

BCD536HP Product Manual Click to View
