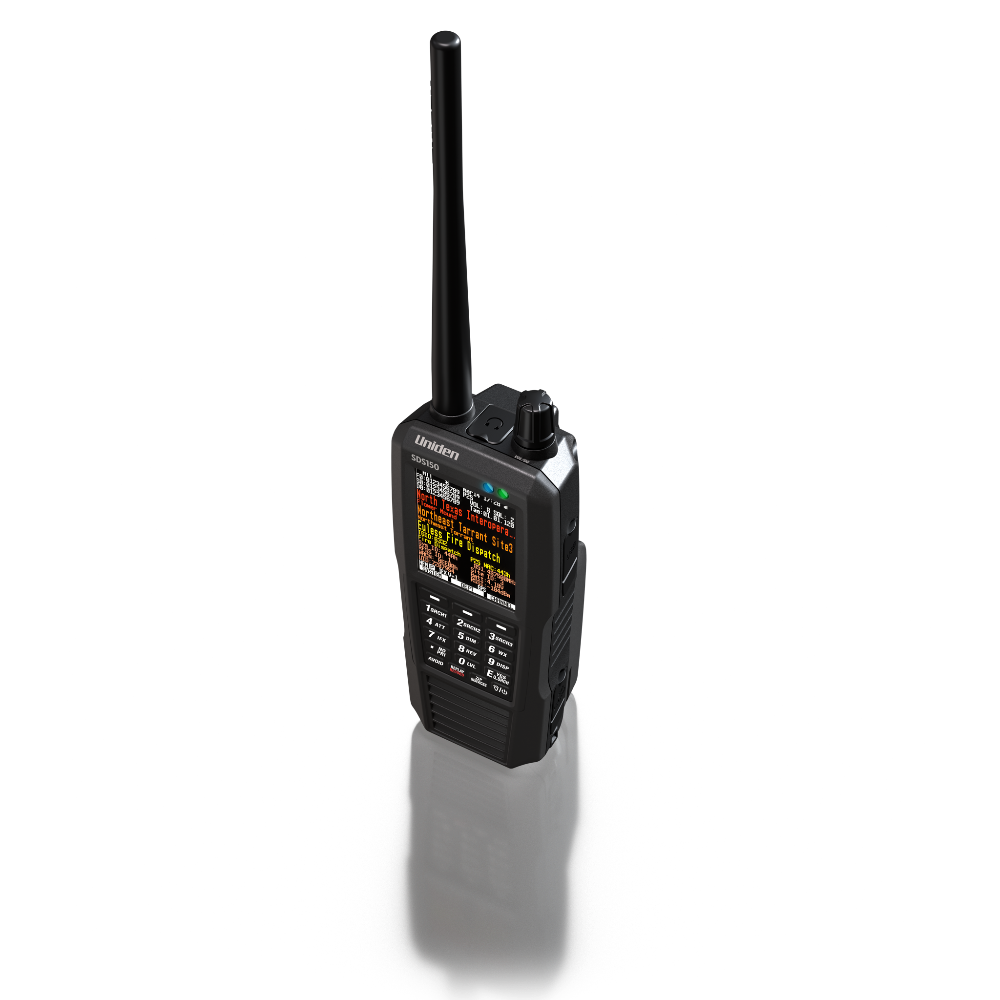

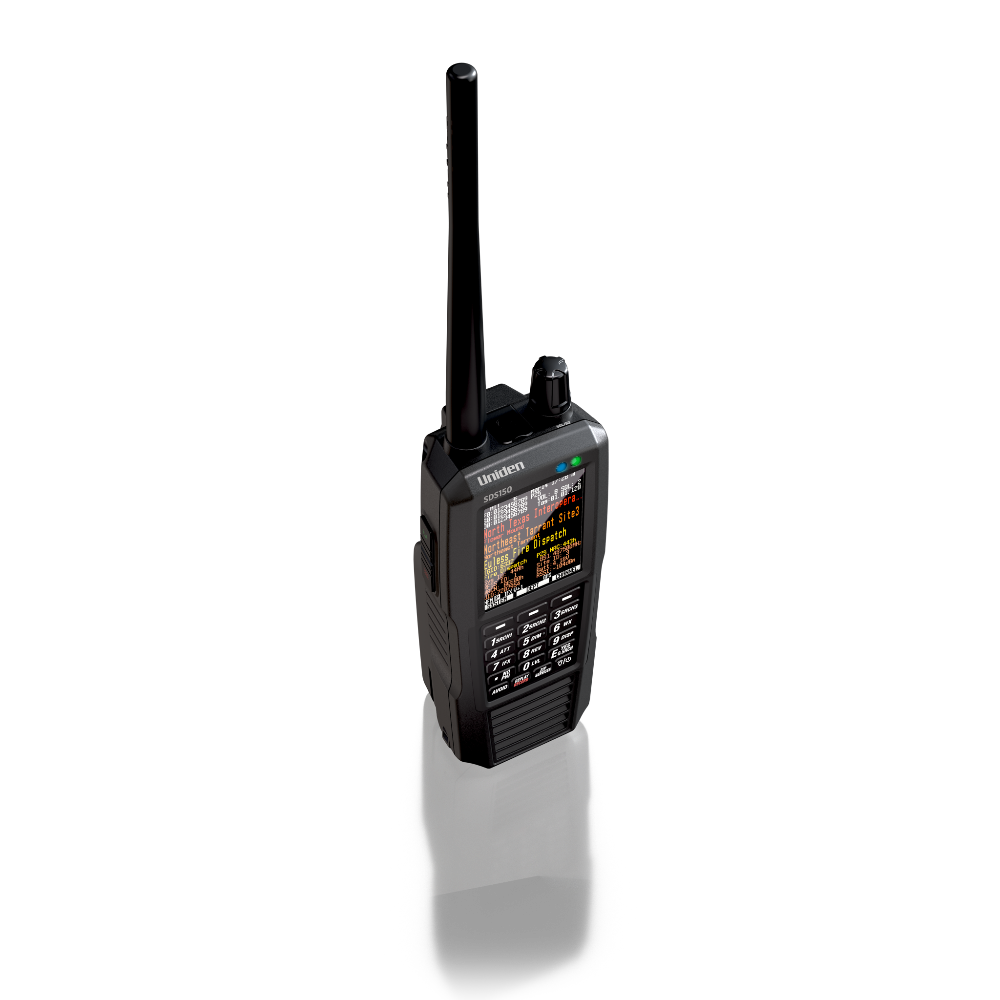

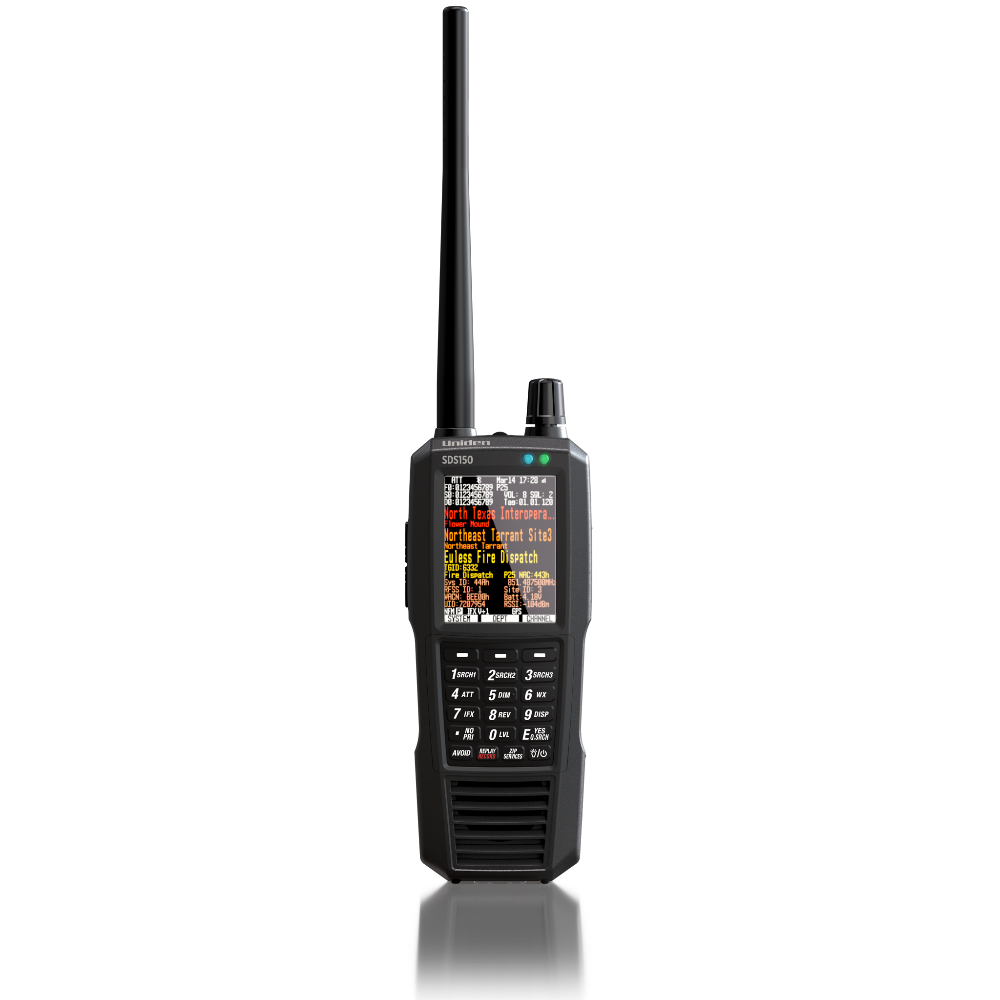

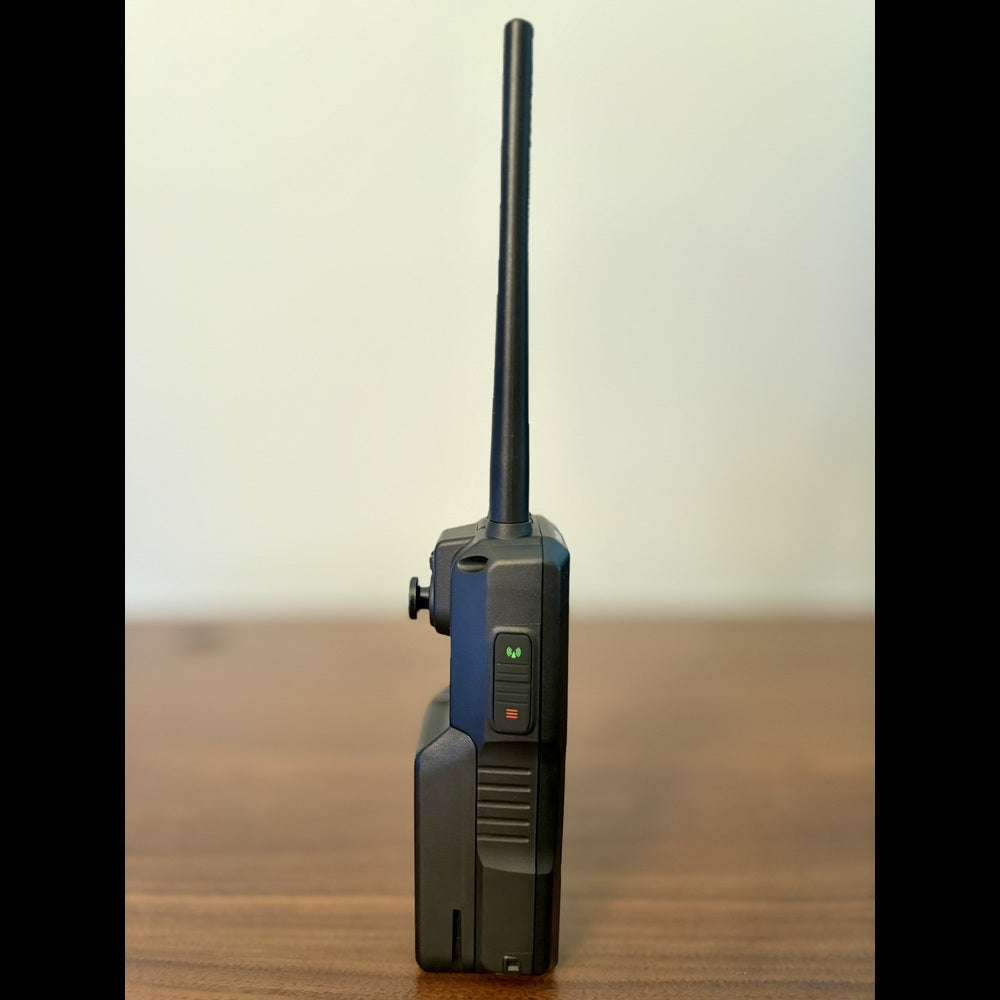

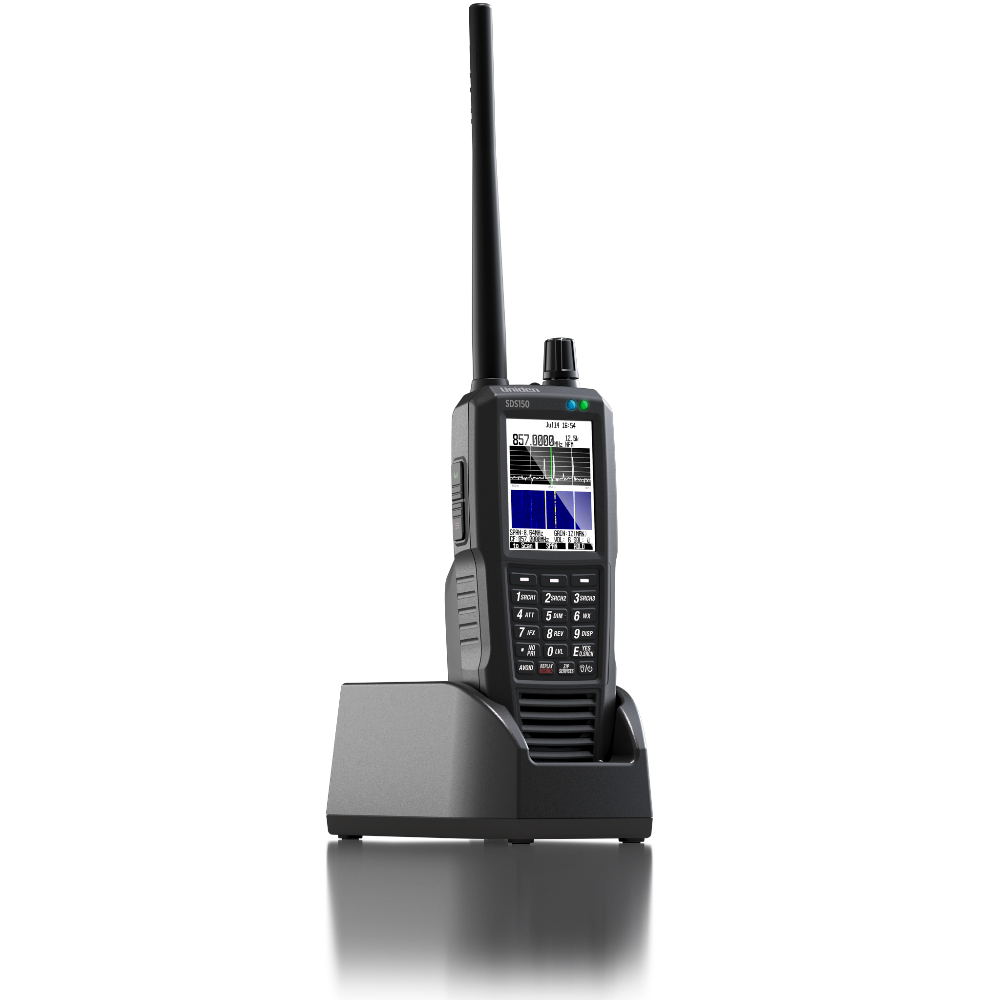

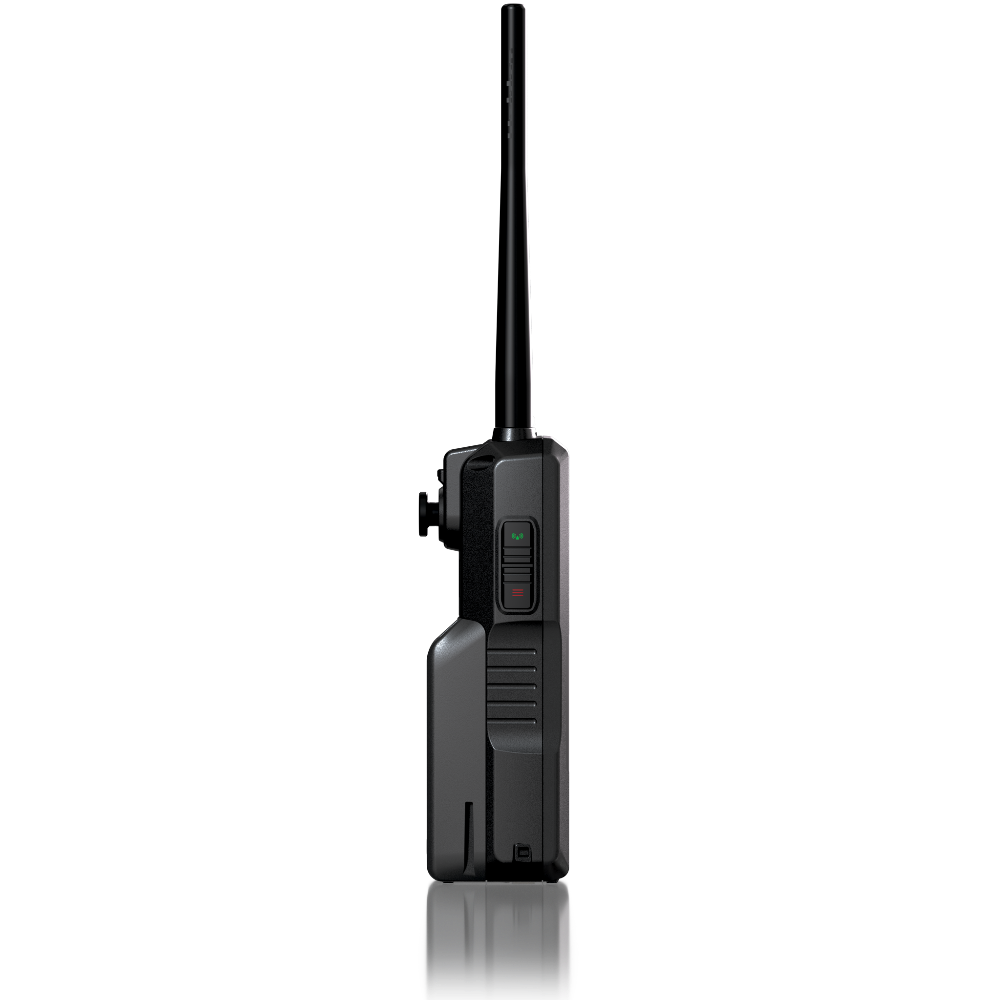

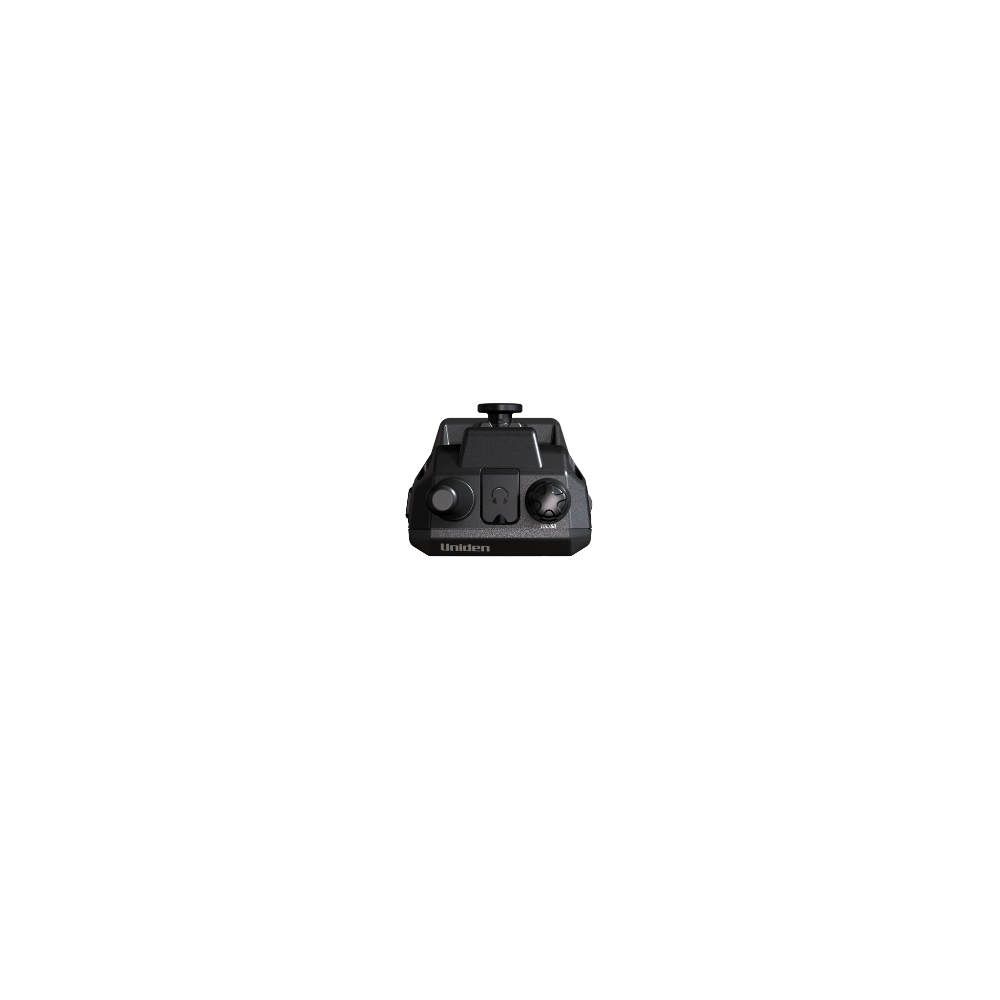

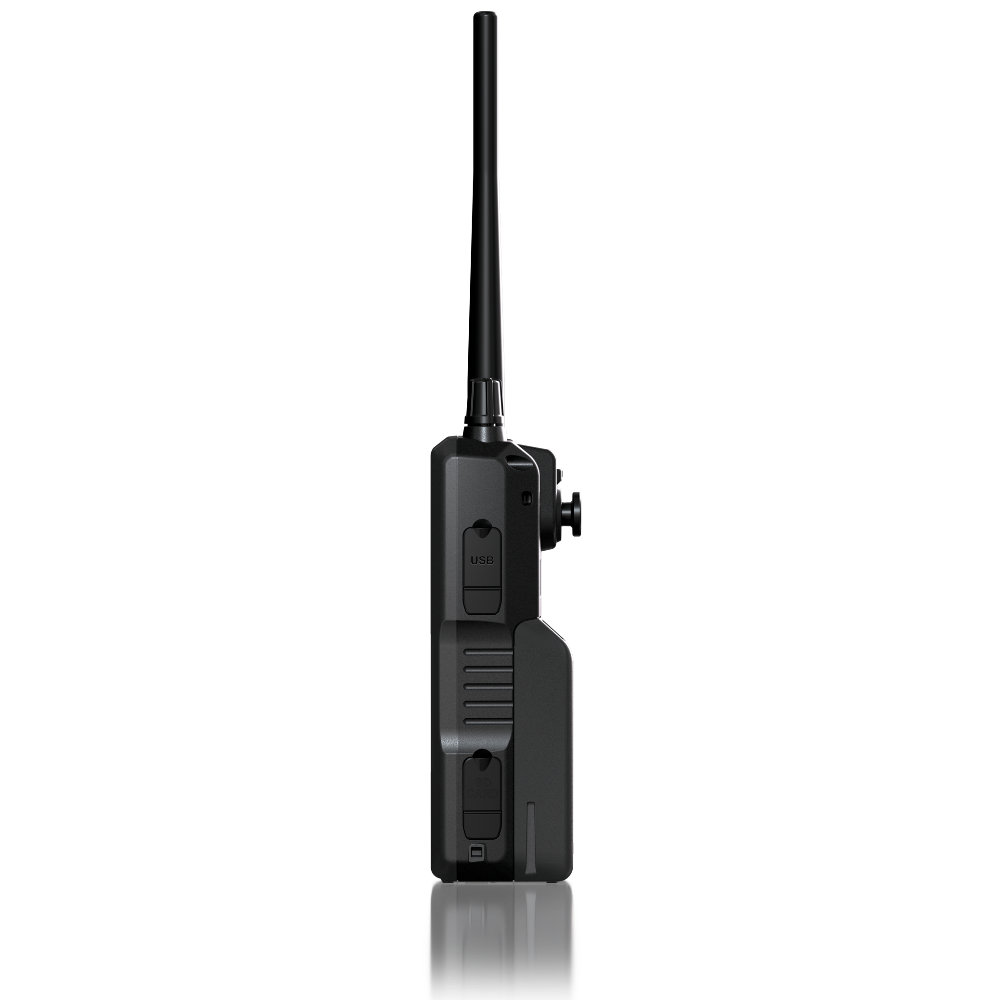

Uniden SDS150 Digital Police Scanner

The SDS150 is Uniden's most advanced digital scanner yet. Uniden is the first company to utilize True I/Q™ Technology for exceptional performance in simulcast areas. Now with added features like a built-in GPS receiver, charge cradle, and support for the U/AWARE app, the SDS150 takes field-ready scanning to the next level.

Built tough for real-world use, the SDS150 is water-resistant to JIS4/IPX4 standards and packed with powerful tools for serious monitoring.

Key Features

Built in GPS Receiver – The integrated GPS receiver allows you to accurately track your location anywhere in the country using the Full Database. Enjoy seamless, on-the-go monitoring with no need for external cables or a separate GPS antenna.

U/Aware App Connectivity – Smartphone connectivity via Bluetooth® low energy (BLE)

HomePatrol Database – Includes all known radio systems in the US and Canada. The database is updatable with the Sentinel software and Uniden updates the main database weekly.

Water Resistant (JIS4/IPX4) – Resistant to dust and damage caused by splashing water from any direction (when all jack covers are in place).

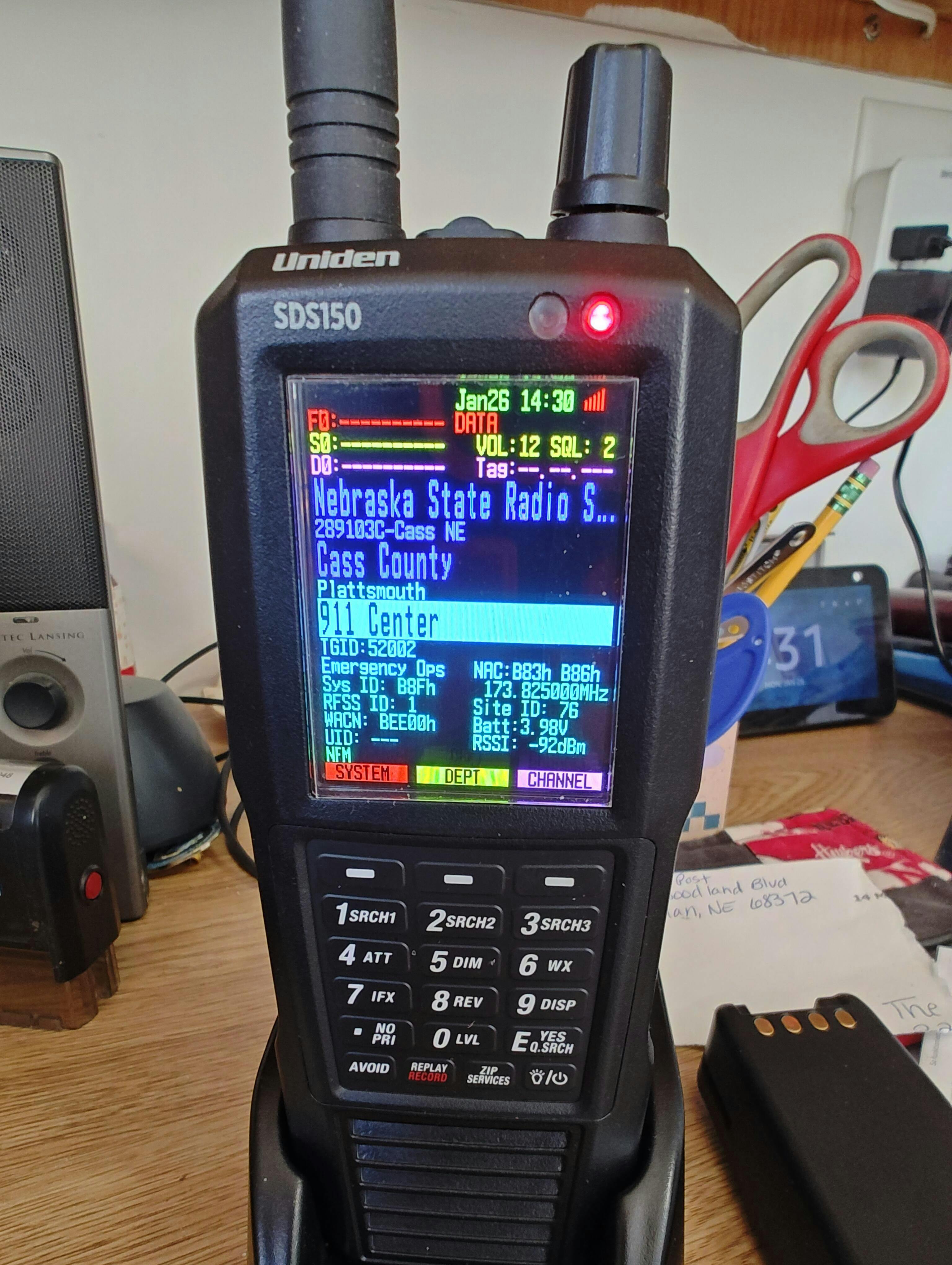

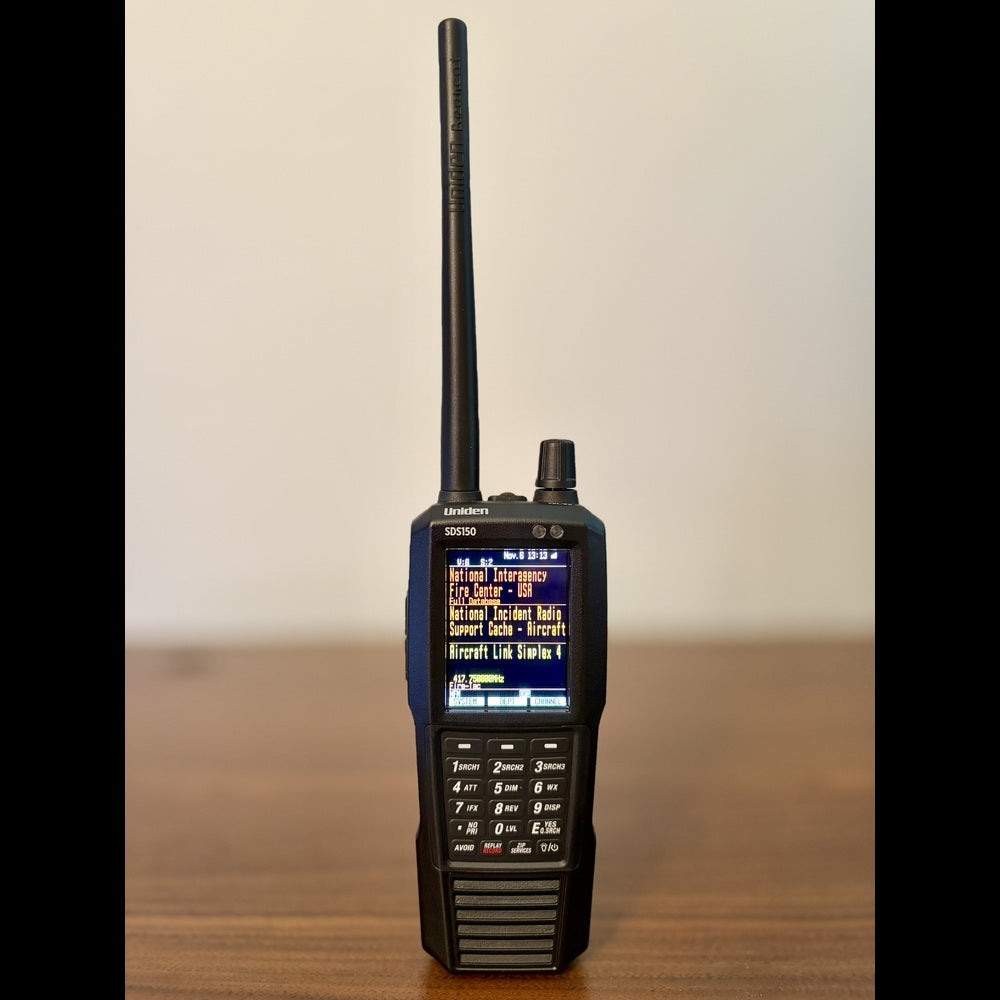

Customizable Color Display – You can set the display color for each field in the display. Additionally, for many fields you can select the information provided.

True I/Q™ Receiver – Designed to improve digital performance in even the most challenging RF environments. An I/Q receiver captures the complete signal waveform in 3 dimensions, allowing for improved digital error correction and signal recovery.

Location-Based Scanning – Allows you to set your location by zip/postal code or GPS coordinates for instant reception. The Auto-locate feature will determine your general location if you don’t know where you are.

Favorites Scan – Allows you to organize your Systems into Favorites Lists. The scanner can scan any combination of Favorites Lists and the Full Database.

MicroSD card (provided - 1 GB up to 32 GB supported) – For storing Favorites Lists, Profiles, all your settings, Discovery sessions,  and recording sessions.

Range Control – Lets you set how far out from your current location the scanner will search for channels in Favorites Lists and the database.

TrunkTracker X Operation – Scans APCO 25 Phase 1 and Phase 2, X2-TDMA, Motorola, EDACS, and LTR trunked systems, as well as conventional analog and P25 digital channels. Optional upgrades add multiple types of NXDN and DMR trunking, as well as EDACS ProVoice decoding.

Instant Replay – Plays back up to 240 seconds (4 minutes) of the most recent transmissions.

Audio Recording – Capture transmissions for later playback.

Custom Alerts – You can program your scanner to alert when you receive a Channel or Unit ID, a Close Call hit, an ID is transmitted with an Emergency Alert, or a Tone-out hit. For each alert, you can select from 9 different tone patterns, 15 volume settings, 7 colors, and 3 flash patterns.

Multicolor LED Alert – The alert LED with 7 colors, Blue, Red, Magenta, Green, Cyan, Yellow, or White, can be used with your Custom Alerts.

Trunking Discovery – Monitors system traffic on a trunked radio system to find unknown IDs and automatically records audio from and logs new channels for later review and identification.

Conventional Discovery – Searches a range of frequencies to find unknown frequencies and automatically records audio from and logs new channels for later review and identification.

Scan by Service Types – Scan your channels by Service Type i.e. Fire, Police, Railroad, etc.

Multi-Level Display and Keypad light – Makes the display and keypad easy to see in dim light with multiple backlight levels.

Temporary or Permanent Avoid – For Systems/Sites/Departments/Channels.

System/Channel Number Tagging – Number tags allow you to quickly navigate to a specific Favorites List, System, or Channel.

Start-up Configuration – You can program each of your Favorites Lists with a Startup Key (0-9) so that when you power up the scanner and press the key number, just those Favorites Lists assigned to the key will be enabled for scan.

Close Call© RF Capture Technology – Lets you set the scanner so it detects and provides information about nearby radio transmissions. Close Call Do-not-Disturb checks for Close Call activity in between channel reception so active channels are not interrupted.

Broadcast Screen – Allows the scanner to ignore search and Close Call hits on known broadcast frequencies including pager frequencies. You can also program up to 10 custom frequency ranges that the scanner ignores.

Fire Tone-Out Standby/Tone Search – Lets you set the scanner to alert you if a two-tone sequential page is transmitted. You can set up to 32 Tone-Outs. The scanner will also search and display unknown tones.

PC Programming – Use the Sentinel software to manage your scanner’s Profiles, Favorites Lists, Databases, and firmware updates.

Priority/Priority w/DND Scan – priority channels let you keep track of activity on your most important channels while monitoring other channels for transmissions.

Priority ID Scan – Allows you to set priority to talkgroup IDs

Intermediate Frequency Exchange – Changes the IF used for a selected channel/frequency to help avoid image and other mixer-product interference on a frequency

Individual Channel Volume Offset – Allows you to adjust the volume offset for each channel.

Configurable Band Defaults – Allows you to set the step (5, 6.25, 7.5, 8.33, 10, 12.5,15, 20, 25, 50 or 100 kHz) and modulation (AM, FM, NFM, WFM, or FMB) for 31 different bands.

Repeater Find – Allows the scanner to try to switch to the repeater frequency if an input frequency is found.

Adjustable Scan/Search Delay/Resume – Set a delay up to 30 seconds or a forced resume up to 10 seconds for each channel or search.

Data Naming – Allows you to name each Favorites List, System, Site, Department, Channel, ID, Location, Custom Search, and SAME group, using up to 64 characters.

Duplicate Input Alert – Alerts you if you try to enter a name or frequency already stored.

Quick Keys – You can assign up to 100 Quick Keys to your Favorites Lists, Systems, Departments, and Sites.

Search Avoids – You can temporarily Avoid up to 250 frequencies and permanently Avoid up to 250 frequencies in any Search mode or Close Call mode.

10 Custom Searches – Lets you program up to 10 custom search ranges.

Search with Scan Operation – Lets you include Custom Search ranges during scan operation.

3 Search Keys – You can assign 3 of the number keys to start a Custom Search, Tone-Out Search, or Close Call Search.

Quick Search – Allows you to start searching at the displayed frequency or enter a frequency and start searching.

SAME Weather Alert/Priority – Lets your scanner alert you when a SAME alert is transmitted on a NOAA weather channel. You can also set a weather channel as a priority channel.

Built-in Battery Charger – Allows you to charge the rechargeable batteries in the scanner from any USB port.

• Extra Large Battery
• APCO P25 Phase I and II
• Motorola, EDACS, and LTR Trunking
• MotoTRBO Capacity + and Connect +*
• NXDN 4800 and 9600*
• EDACS ProVoice
• Customizable Color Display
• Trunktracker X
• APCO P25 Phase I and II
• Motorola, EDACS, and LTR Trunking
• MotoTRBO Capacity + and Connect +**
• DMR Tier III**
• Hytera XPT**
• Single-Channel DMR**
• NXDN 4800 and 9600**
• EDACS ProVoice**
• Location-Based Scanning
• USA/Canada Radio Database
• ZIP Code Selection for Easy Setup
• Close Call™ RF Capture with Do Not Disturb
• 8 GB microSD
• Soft Keys for UI
• Recording, Playback, and Replay
• Temporary Avoid
• Fire Tone-Out Alert
• System Analysis and Discovery
• CTCSS/DCS/NAC/RAN/Color Code Decoding
• A.M.E. Weather Alert
• Enhanced Dynamic Memory
• Preemptive Trunking Priority
• Fully Customizable Scanning with your own Favorites Lists
• Backlit Keypad
• Channel Volume Offset
• PC Programming and Control
• USB Connectivity and Charging
• Weekly Database Updates
• Free Sentinel Software keeps the SDS150 database and memory up to date
• Up to 8 Hours of Operation on included LiIon Battery

** Paid Upgrade required.

• SDS150 Radio Scanner

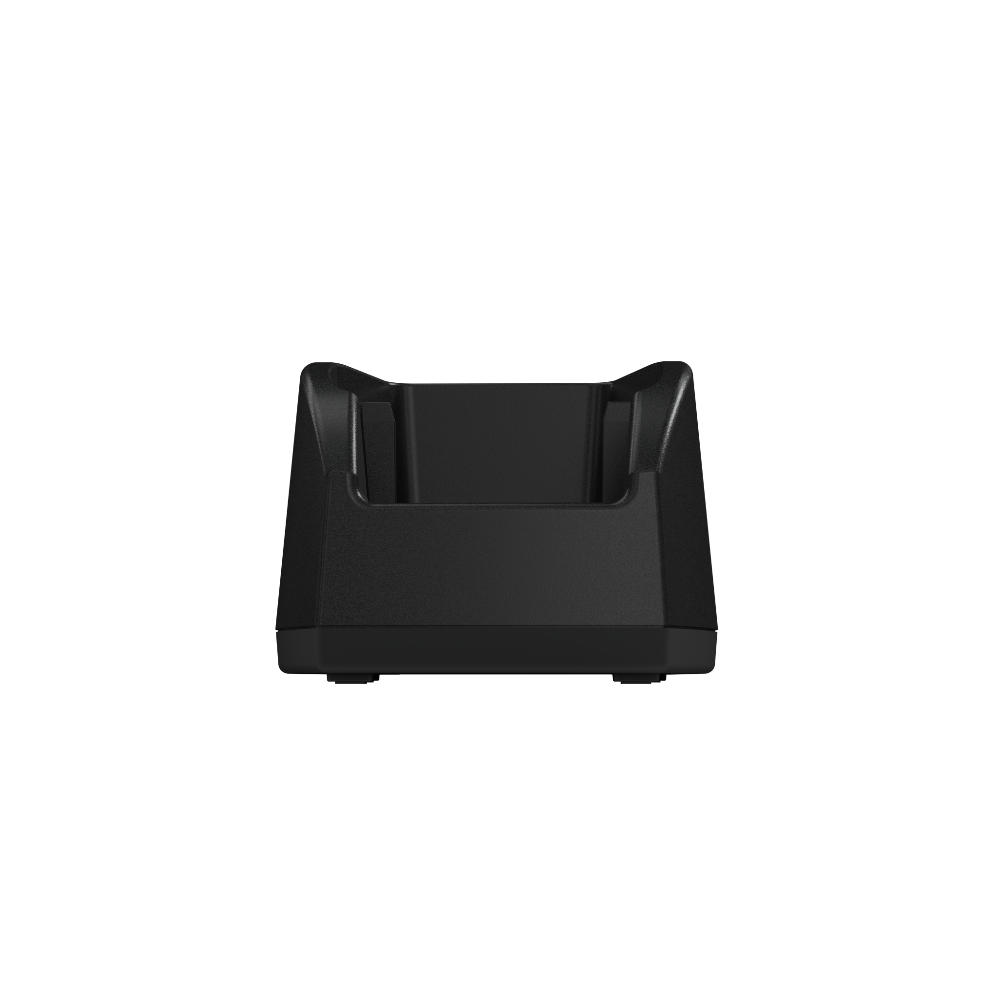

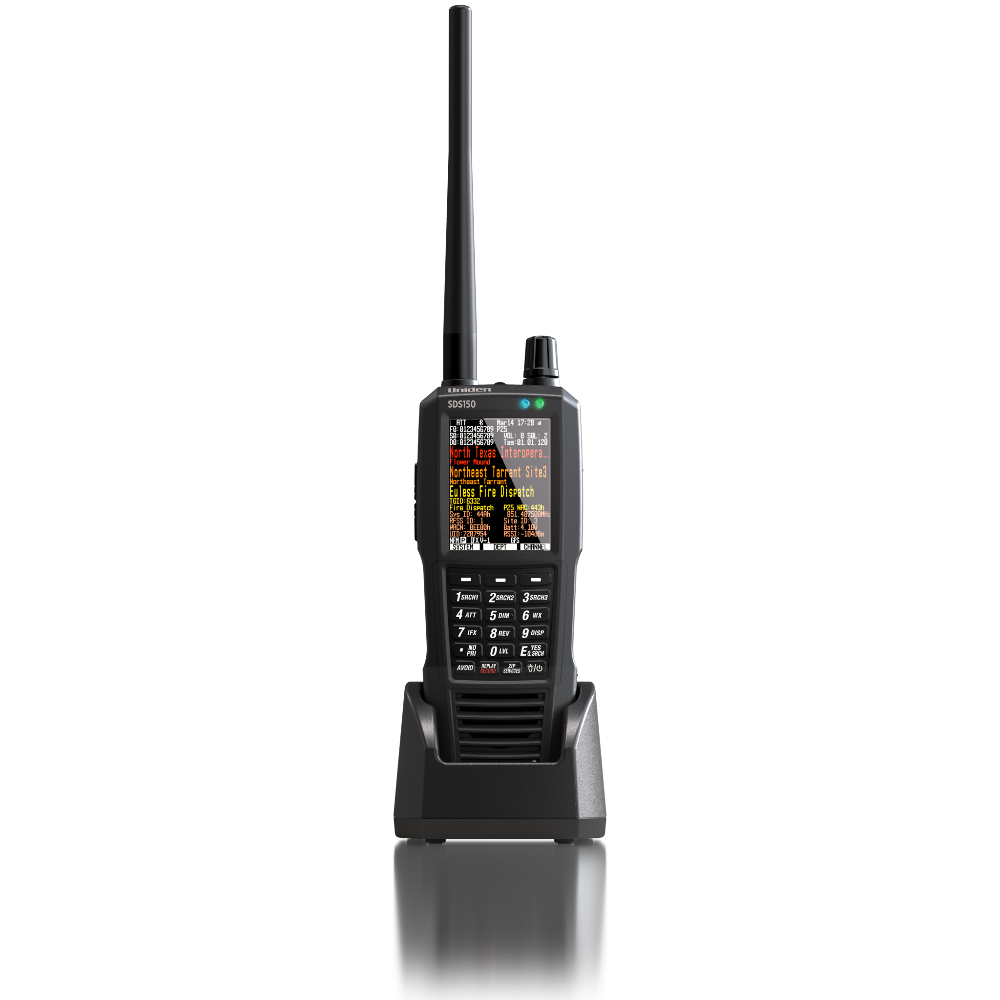

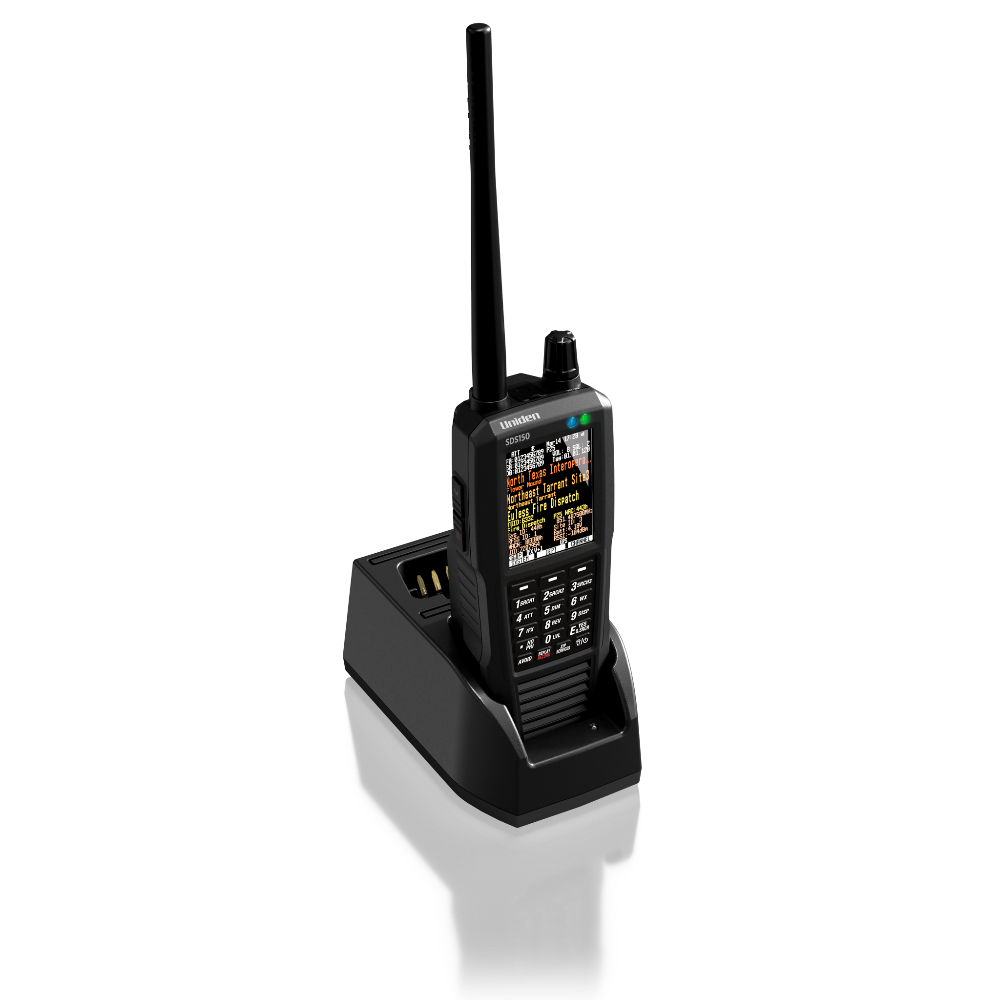

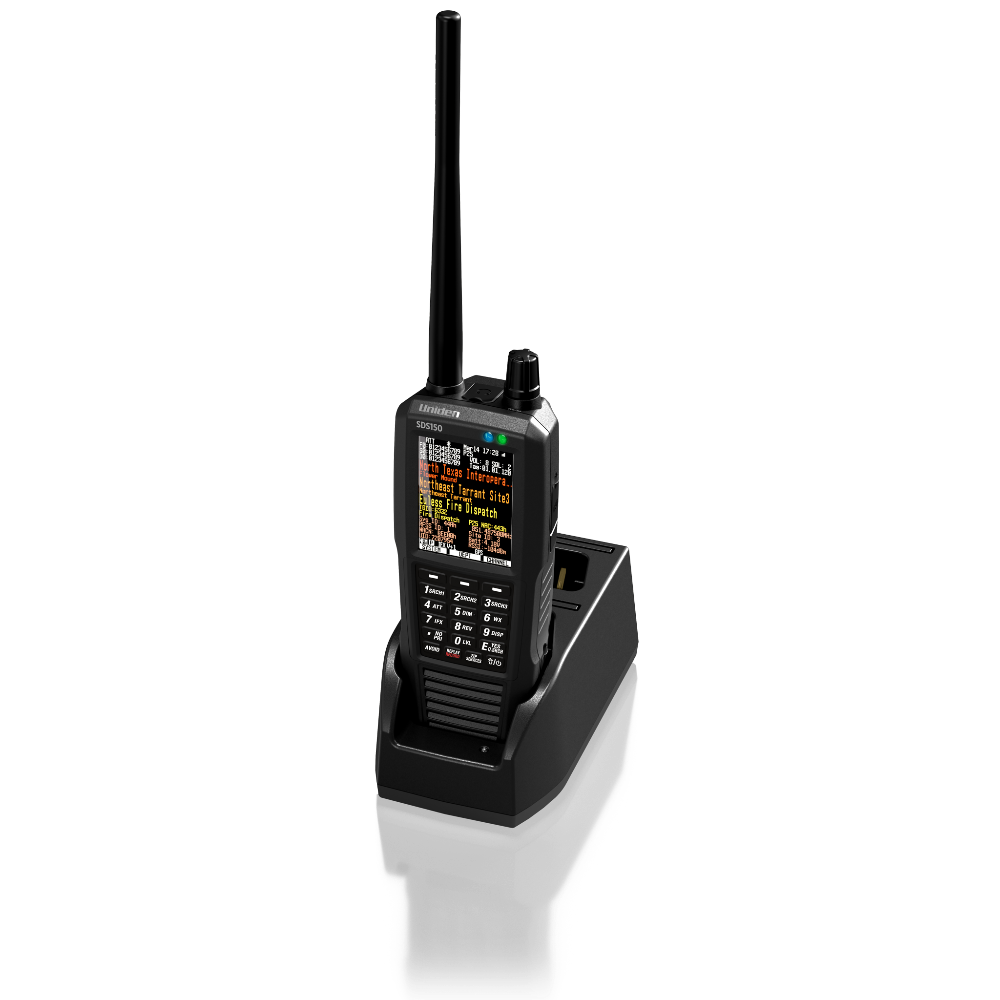

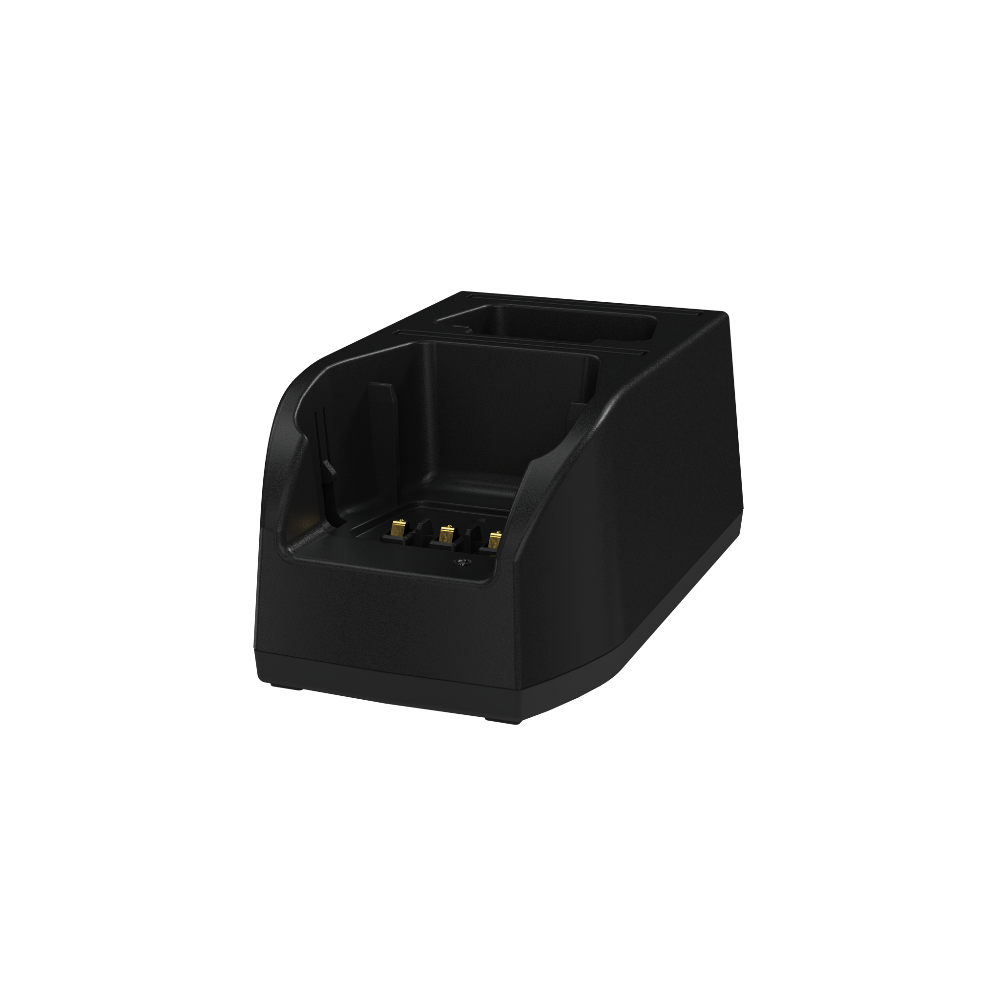

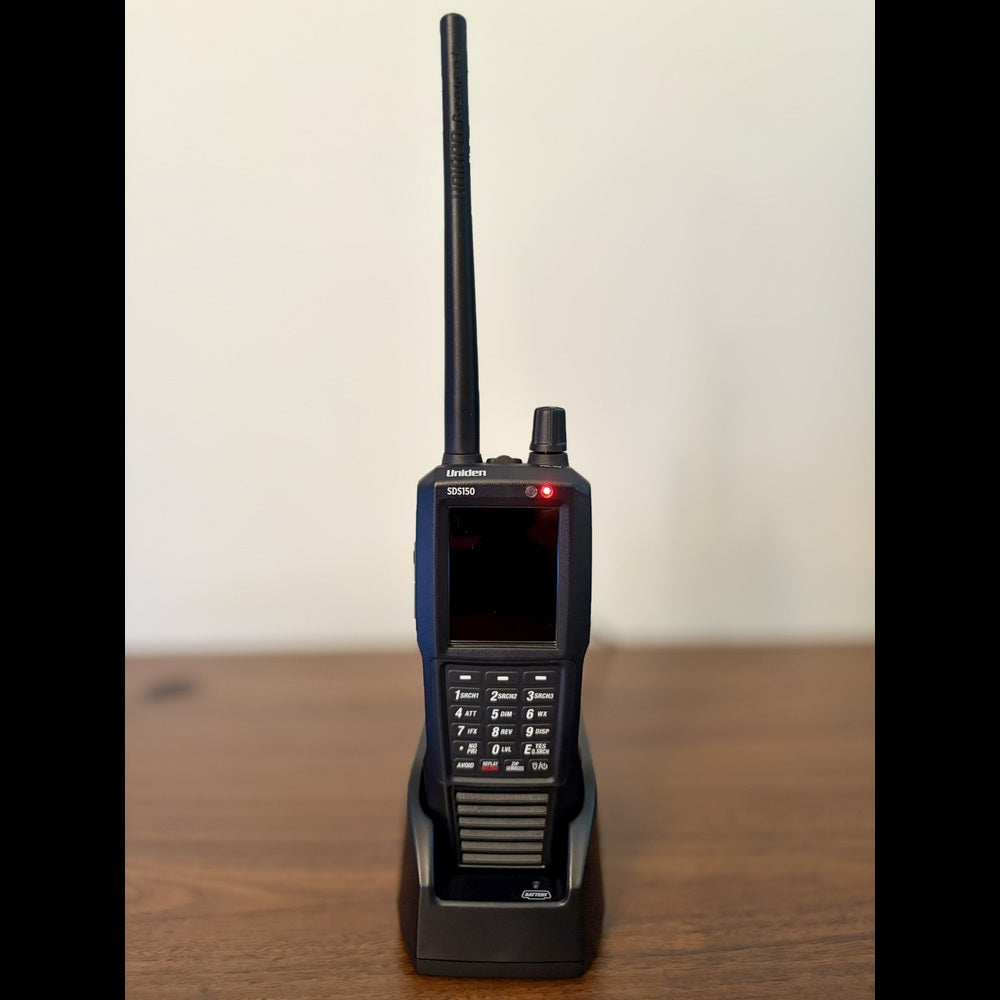

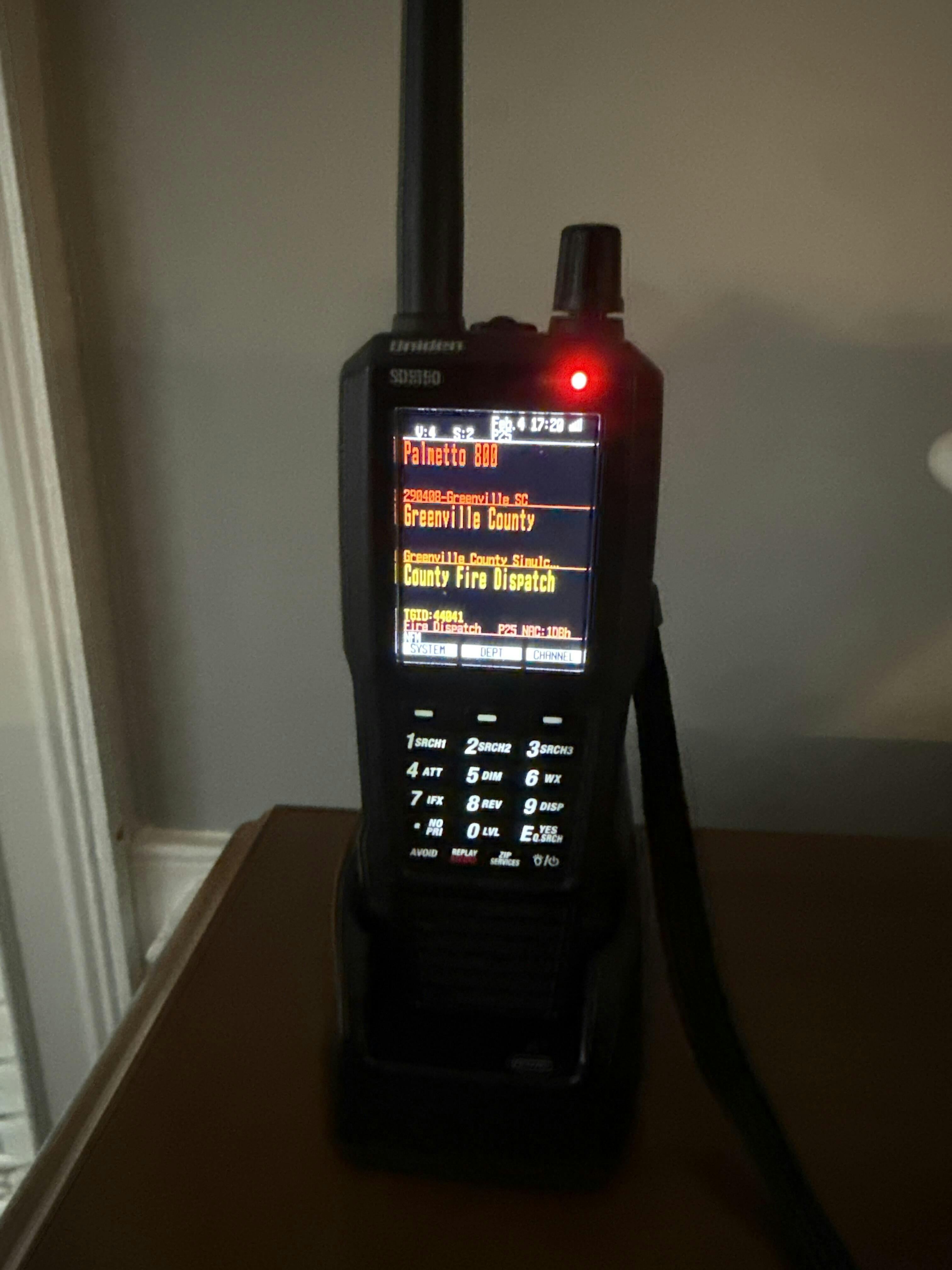

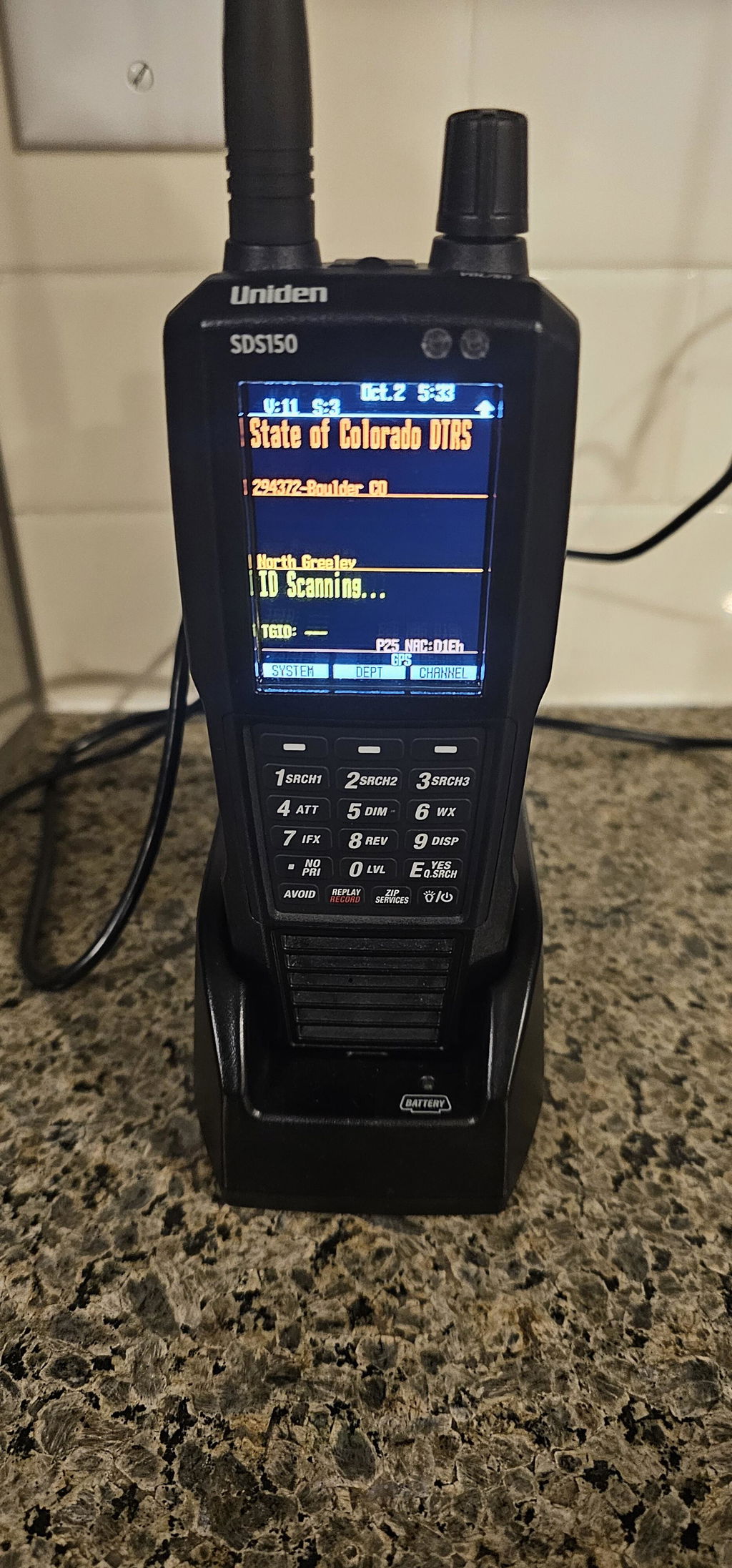

• Charge Cradle with Extra Battery Slot

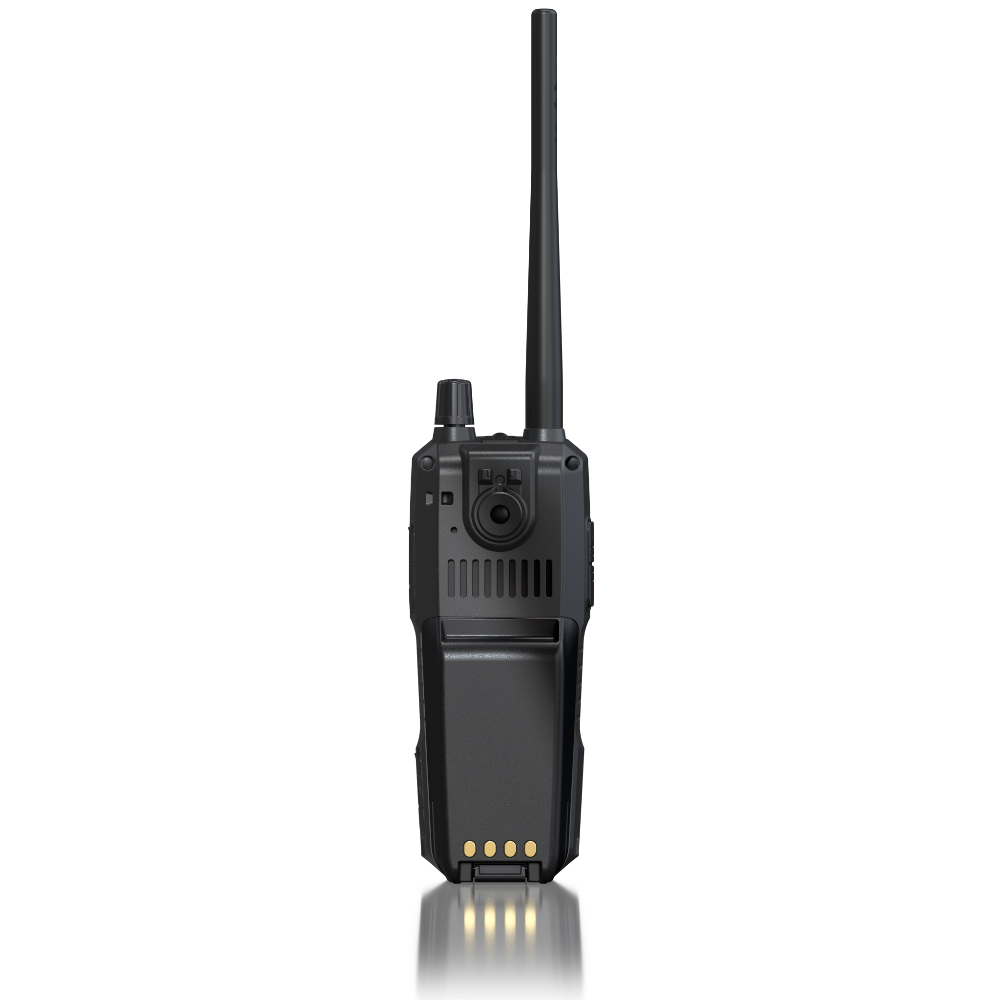

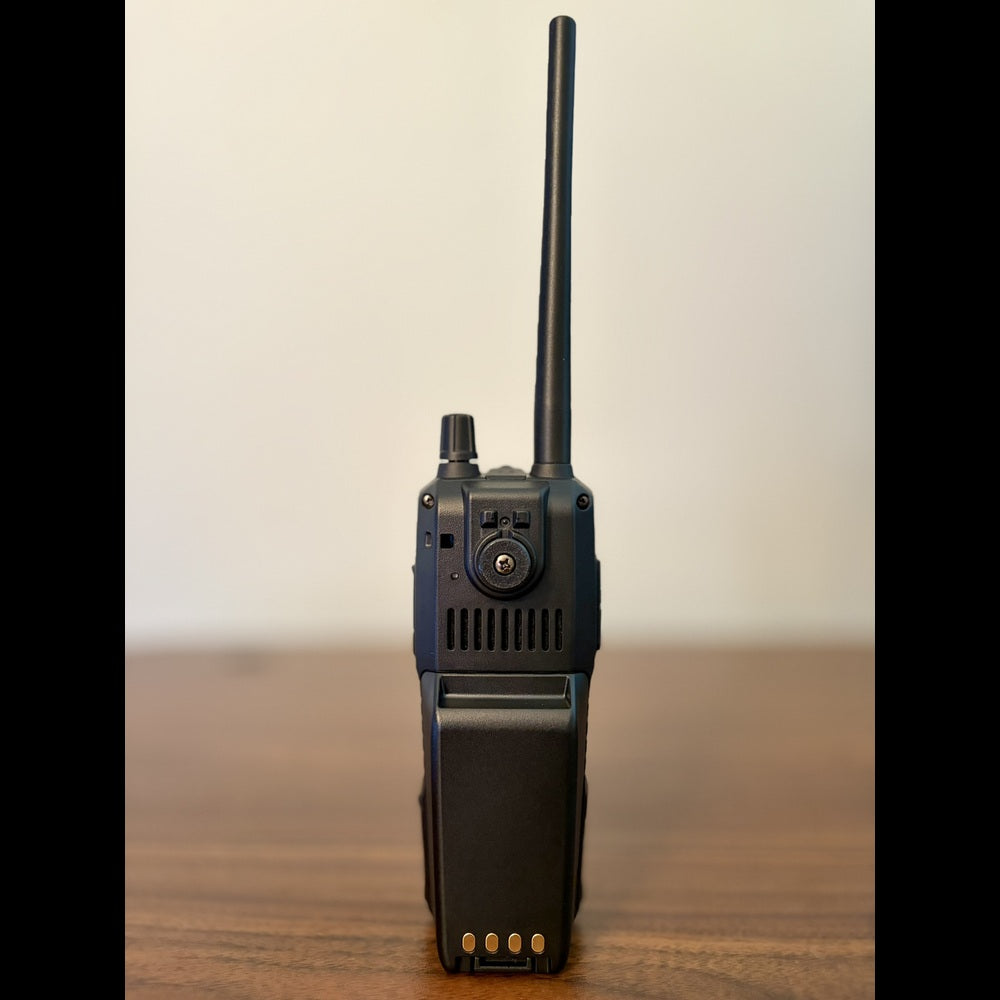

• Lithium-ion Battery Pack
• AC Adaptor With USB-C Port
• USB-C Cable
• Micro SD Card (Installed)
• SMA Type Antenna
• SMA to BNC Antenna Adapter
• Belt Clip & Hand Strap
• Printed Material

PRODUCT DIMENSIONS & WEIGHT

Depth: 1.5 in x Width: 2.5 in x Height: 6.0 in

Weight: 10.6 oz
